| Artikelnummer: |
C016 10D006 000 12 |
| Voorraad: |
24 |

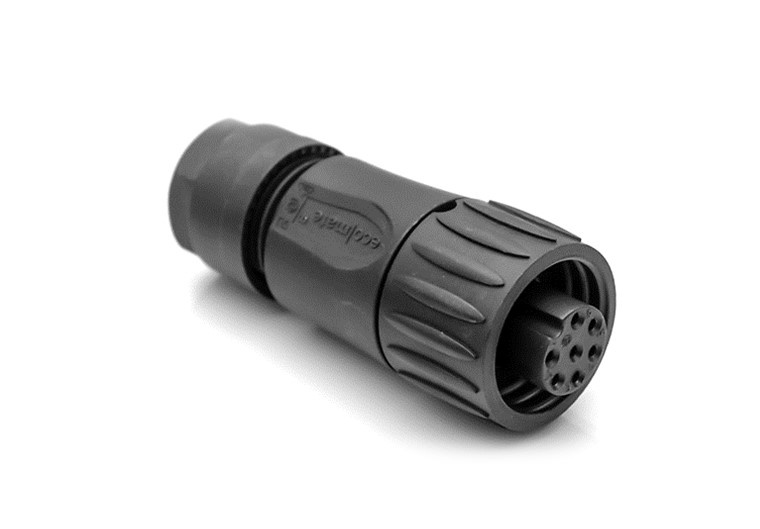

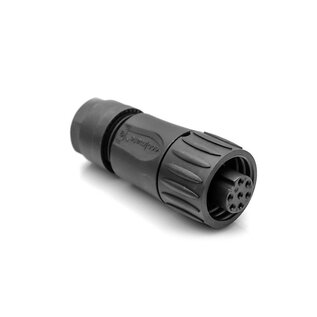

Amphenol ronde connector 6+PE - Kunststof - Zwart - C016 10D006 000 12
| part category |
female cable connector |
| gender |
female |
| locking system |
screw coupling |
| housing style |
straight |
| minimum cable diameter |
6 MM |
| maximum cable diameter |
12.5 MM |
| strain relief |
no |
| lower temperature |
-40 GC |
| upper temperature |
125 GC |
| IP-class mated |
IP67 |
| rated voltage |
250 V |
| rated current (40 °C) |
14 A |

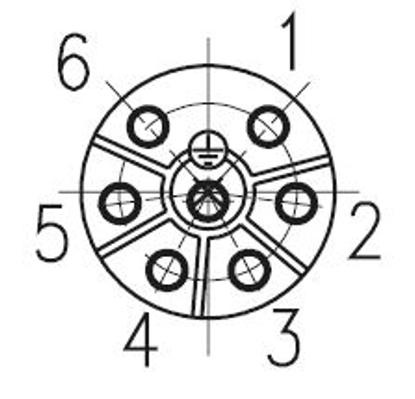

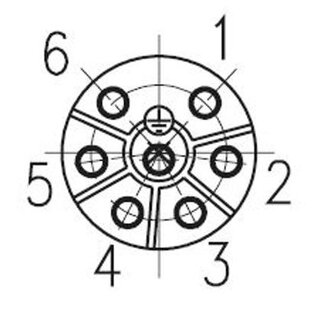

| number of positions (w/o PE) |
6 |
| number of PE contacts |
1 |
| min. wire gauge |
0.14 |
| max. wire gauge |
1.5 |
| shielding |
no |
