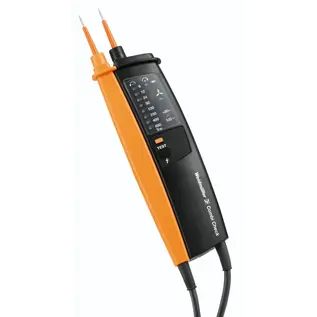

Weidmüller Spanningstester VT Combi Pro - 2-Polig - 6 t/m 690V. - 9918860000

Home / Weidmüller Spanningstester VT Combi Pro - 2-Polig - 6 t/m 690V. - 9918860000

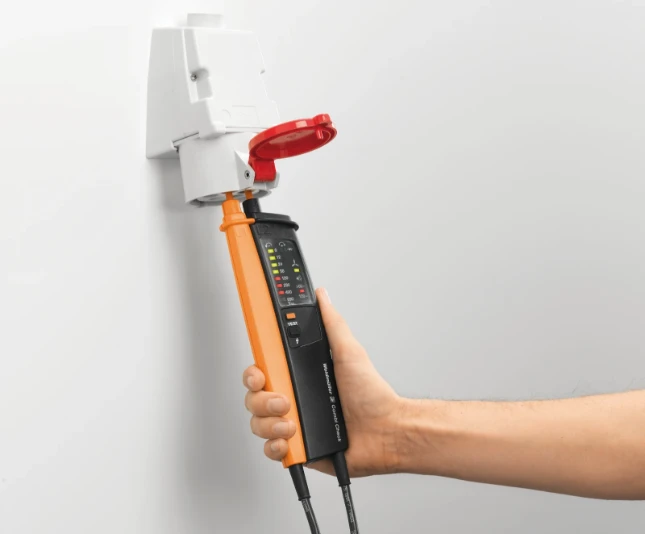

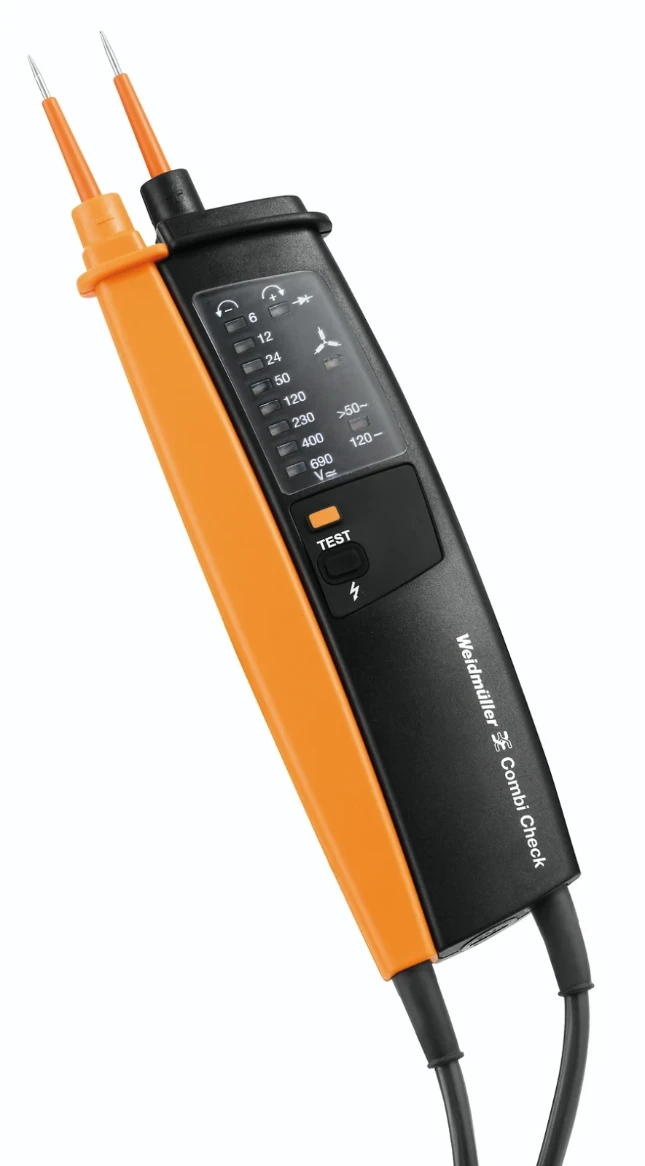

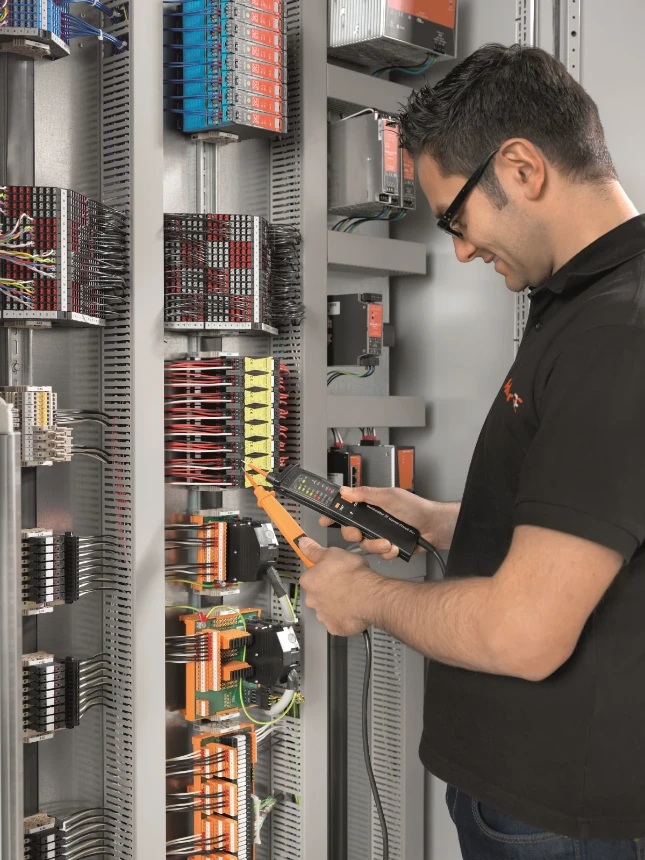

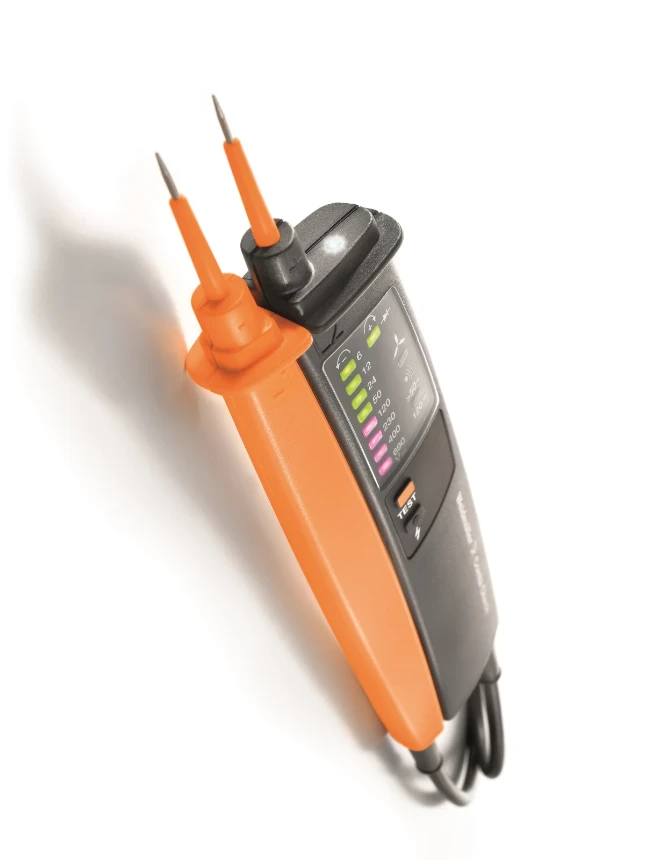

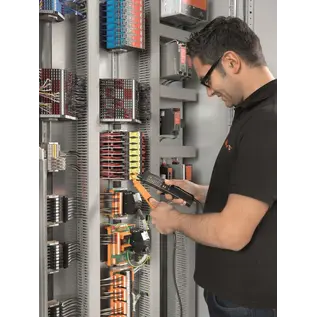

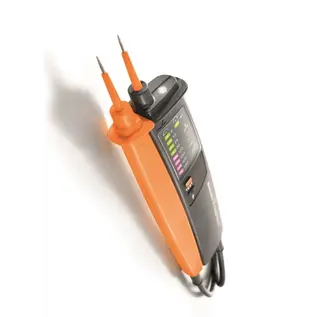

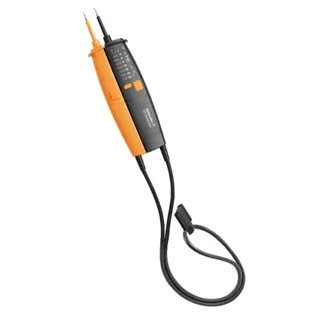

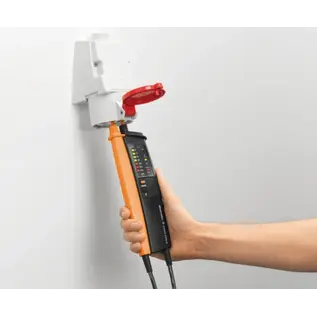

Professionele, 2-polige spanningstester van Weidmüller: VT Combi Pro / Combi Check 1.3 6 t/m 690V.
CAT III / 690 V CAT IV / 600 V
WEIDMULLER 9918860000

Weidmüller Weidmüller Spanningstester VT Combi Pro - 2-Polig - 6 t/m 690V. - 9918860000

€77,98 Incl. btw

Levertijd: Bestellingen op ma. t/m vrij. voor 17:00 worden dezelfde dag verstuurd.

Merk:

Weidmüller

Artikelnummer:	9918860000
Voorraad:	6

Weidmüller Spanningstester VT Combi Pro - 2-Polig - 6 t/m 690V. - 9918860000

AC voltage display: 6,12, 24, 50, 120, 230, 400, 690 V

AC voltage measuring range: 6-690 V

Battery type: 1.5 V type AAA battery

Buzzer: Yes

Continuity test: Yes - visual + acoustic

DC voltage display: 6,12, 24, 50, 120, 230, 400, 690 V

DC voltage measuring range: 690 V

Display: LED

Frequency range, max.: 400 Hz

Frequency range, min.: 16 Hz

HOLD function: No

Insulation test: 8 kV

Load switchable: Yes

Measuring range category: CAT III – 690V/CAT IV – 600V

Note: Screw-on, thicker test probes

One-handed operation: Yes

Peak voltage resistance: 8 kV

Phase sequence display: Yes

Protection degree: IP65

Rated voltage, max.: 690 V AC/DC

Rated voltage, min.: 6 V

RCD circuit breaker: The selectable load enables conscious triggering of a 30 mA RCD circuit breaker

Tested and approved according to: IEC 61243-3:2014 (DIN EN 61243-3:2015-08)

Working temperature, max.: 55 °C

Working temperature, min.: -15 °C

https://youtu.be/RhmxKjg5g14
